Product Summary

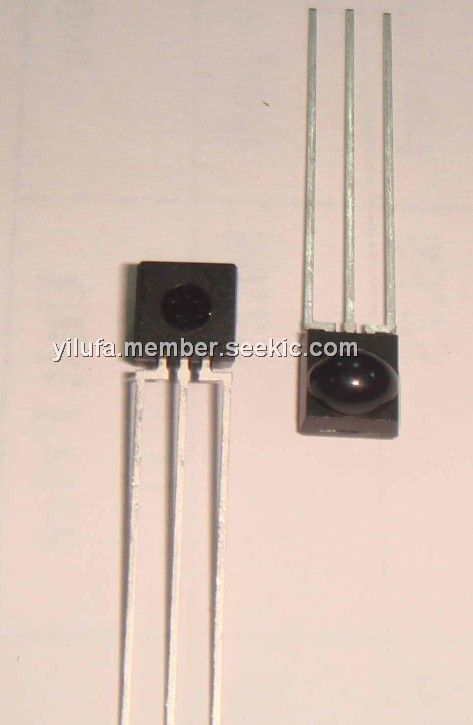

The SFH5110-36 is a IR receiver to detect light from infrared remote control systems. The IC includes photodiode, preamplifier, automatic gain control, bandpass and demodulator. The black-colored package is designed as daylight-cutoff filter. The applications of the SFH5110-36 are Remote control module for TV sets, VCRs, hi-fi audio receivers, SAT receivers and compact disk players, safe data transmission error tolerant codes.
Parametrics
SFH5110-36 absolute maximum ratings: (1)Operation and storage temperature range:-30℃ to +100℃; (2)Supply voltage:6.3V; (3)Output voltage:6.3V; (4)Output current:3mA; (5)Total power dissipation, TA ≤ 85℃:50mW.
Features
SFH5110-36 features: (1)IC with monolithic integrated photodiode (single chip solution); (2)Especially suitable for applications of 940 nm; (3)High sensitivity; (4)Various carrier frequencies available; (5)TTL and CMOS compatibility; (6)Output: active Low.

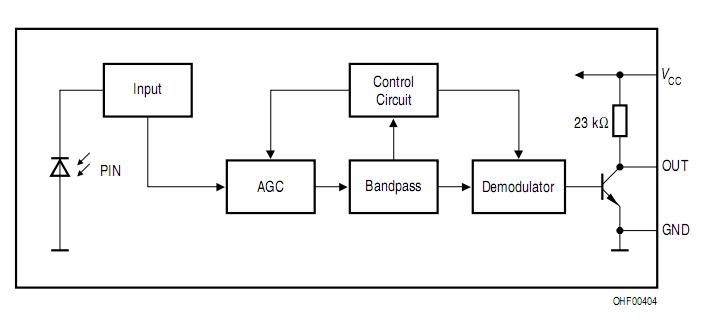

Diagrams
 |
