Product Summary

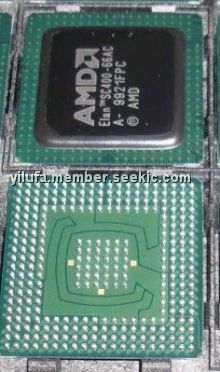

The ELANSC400-66AC is a microcontroller. The device integrates proven x86 CPU cores with a comprehensive set of on-chip peripherals in a 0.35-micron process. The ELANSC400-66AC uses the industry-standard 486 microprocessor instruction set. TheELANSC400-66AC combines a 32-bit, low-voltage Am486 CPU with a complete set of PC/AT-compatible peripherals, along with the power management features required for battery operation.
Parametrics
ELANSC400-66AC absolute maximum ratings: (1)Storage Temperature :–65 to +125℃; (2)Ambient Temperature Under Bias: –65 to +110℃; (3)Supply Voltage VCC with Respect to GND: –0.5 V to +4.6 V; (4)Voltage on 5-V-Tolerant Pins: –0.5 V to (VCC+2.6 V); (5)Voltage on Other Pins: –0.5 V to (VCC+0.5 V).
Features
ELANSC400-66AC features: (1)Accelerates time-to-market with simplified hardware; (2)Low-power 0.35-micron process technology; (3)Single chip delivers smallest system form factor; (4)33-MHz, 66-MHz, and 100-MHz operating frequencies; (5)Seven modes of operation allow fine-tuning of power requirements for maximum battery life; (6)Provides a superset of APM 1.2 features; (7)End-user (after-market) system expansion; (8)ExCA-compliant, 82365-register set compatible; (9)Leverages off-the-shelf card and socket services; (10)Supports DMA transfers between I/O PC cards and system DRAM; (11)Bidirectional parallel port with Enhanced Parallel Port (EPP) mode; (12)16550-compatible UART; (13)Infrared port for wireless communication.

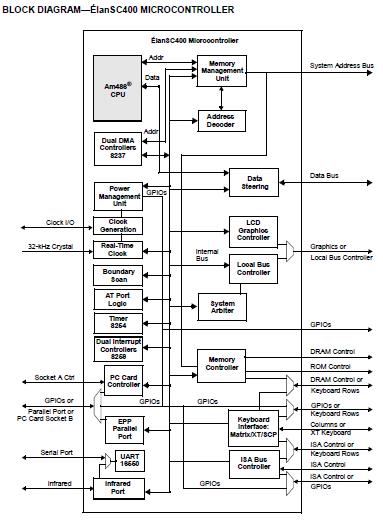

Diagrams
 |
