Product Summary
The CY28346ZI-2 is a Clock Synthesizer.
Parametrics
CY28346ZI-2 absolute maximum ratings: (1)VDD Core Supply Voltage: -0.5, 4.6 V; (2)VDD A Analog Supply Voltag: -0.5, 4.6 V; (3)VIN Input Voltage Relative to VSS: -0.5, VDD + 0.5 VDC; (4)TS Temperature, Storage Non-functional: -65, 150 ℃; (5)TA Temperature, Operating Ambient Functional: 0, 85 ℃; (6)TJ Temperature, Junction Functional: 150 ℃; (7)ØJC Dissipation, Junction to Case Mil-Spec 883E Method 1012.1: 45 ℃/W; (8)ØJA Dissipation, Junction to Ambient JEDEC (JESD 51): 15 ℃/W.
Features
CY28346ZI-2 features: (1)Compliant with Intel CK 408 Mobile Clock Synthesizer specifications; (2)3.3V power supply; (3)3 differential CPU clocks; (4)10 copies of PCI clocks; (5)5/6 copies of 3V66 clocks; (6)SMBus support with Read Back capabilities.

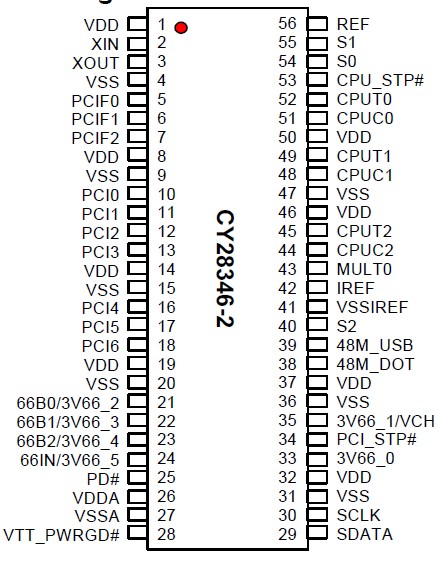

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

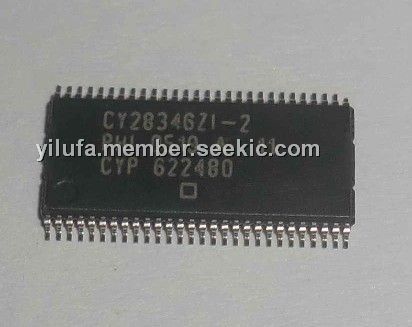

![]() CY28346ZI-2 |
![]() Silicon Labs |
![]() Clock Synthesizer / Jitter Cleaner NB clk for Intel 830M & 845 chipsets |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() CY28346ZI-2T |
![]() Silicon Labs |
![]() Clock Synthesizer / Jitter Cleaner NB clk for Intel 830M & 845 chipsets |
![]() Data Sheet |
![]()
|
|
